Valves, Fittings & Tubings - Valves 1550 bar

  • MAXIMATOR valves of the 21V series have a cold-machined stainless steel body. Valve bodies are available in six different designs and can be equipped with regulating stem.
  • A special feature is the non-rotating stem which ensures a long life and thus a high reliability of the valve.

Generell informasjon

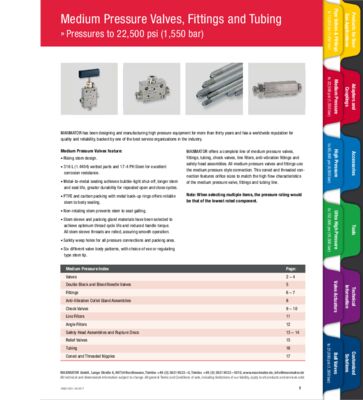

Web Catalogue VFT-Chapter 2 - Medium Pressure.pdf
Web Catalogue VFT-Chapter 2 - Medium Pressure.pdf
Medium Pressure Valves, Fittings and Tubings; 1,500 bar; 21,000 psi; Coned and Threaded Nipples; O-Ring Check Valves; Ball Check Valves; Anti Vibration Collet Gland Assemblies; Line Filters; Safety Head Assemblies; Rupture Discs

MAXIMATOR valves of the 21V series have a cold-machined stainless steel body. Valve bodies are available in six different designs and can be equipped with regulating stem.

A special feature is the non-rotating stem which ensures a long life and thus a high reliability of the valve. These MAXIMATOR high pressure valves with metal sealing have a high level of safety and reliability under adverse operating conditions.

These valves may be employed both with gases and all fluids. Their traceability is ensured through extensively documented data (batch number, max. pressure, material number, type designation).

Each high pressure valve of the MAXIMATOR series is completely equipped with gland and collar.

Technical data:

Body material

316 L (1.4404)

Stem material

17 – 4 PH (1.4542)
Medium cf. Medium compatibility guide
Temperature – 50° C up to +230° C
Sealing PTFE + Carbon
Connections 4MF, 6MF, 9MF, 12MF, 16MF
Orifice 0,11" - 0,56" (2,7 - 14,3 mm)

Special features

  • High-quality valve body – 1.4404 (316 L)
  • Relief bore for absolute safety
  • Six different valve designs
  • Non-rotating stem

Special designs

  • Elongation for valve handles
  • Extreme temperatures
  • Special materials
