High Pressure Pumps - G series - G250

Teknisk data

Type G250
Pressure ratio 1:265
Displacement volume (cm³) 3,80
Displacement volume (in³) 0,23
Discharge (bar) 2650
Discharge (psi) 38425
Air Drive Pressure min. (bar) 1
Air Drive Pressure min. (psi) 14.5
Air Drive Pressure max. (bar) 10
Air Drive Pressure max. (psi) 145
Weight (kg) 13,50
Flow (cfm) 0,03
Flow (l/min) 0,77
Inlet (in) 1/2
Outlet (UNF) 9/16-18
Drive Air (in) 3/4
Operating Temperature max. (°C) 60
Height (mm) 300,00
Depth (mm) 193,50
Width (mm) 272,00

Produktark

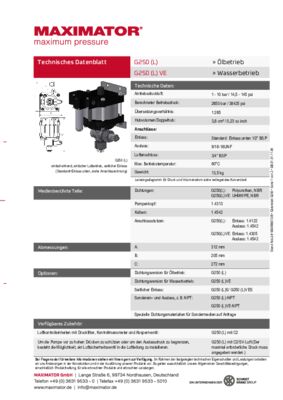

DB 01.01.11.06 Pumpen G250
