Hydraulic Units - Power Packs for Oil Service - Typ AH 101.698.05

Type MSF 4
Compression ratio 1:4
max. working pressure approx. 25 bar
Medium Marlotherm
max. flow capacity depending from application
Drive air connection BSP 1/4"
Pressure outlet connection BSP 1/2"
Dimensions (W x D x H) 720 x 600 x 1774
Weight approx. 300 kg
Drive air pressure min. 1 bar / max. 10 bar

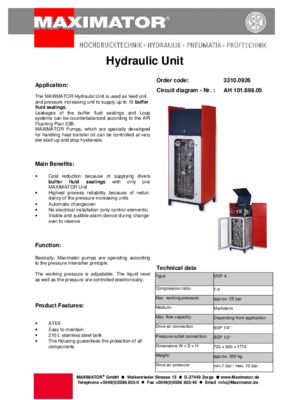

Produktark
