Gas Boosters - Boosters to 2,400 bar (36,000 psi) - DLE 30-75

Type DLE 30-75
Pressure ratio 1:30 / 1:75
Displacement volume (cm³) 60,00
Displacement volume (in³) 3,66
Gas Inlet Pressure pA max. (bar) 12*pL
Gas Inlet Pressure pA max. (psi) 12*pL
Gas Inlet Pressure pA min. (bar) 15
Gas Inlet Pressure pA min. (psi) 217.5
Formula to calculate gas outlet pressure pB 75*pL + 75/30*pA
Max. permitted outlet pressure (bar) 1500
Max. permitted outlet pressure (psi) 21750
Air Drive Pressure min. (bar) 1
Air Drive Pressure min. (psi) 14.5
Air Drive Pressure max. (bar) 10
Air Drive Pressure max. (psi) 145
Weight (kg) 19,00
Inlet (in) 1/4
Outlet (in) 1/4
Drive Air (in) 3/4
Operating Temperature max. (°C) 60
Height (mm) 233,00
Depth (mm) 225,50
Width (mm) 620,00
Material of gas section Rustfritt stål

Produktark

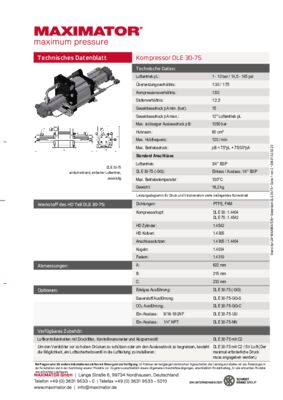

DB 01.02.02.20 Kompressor DLE 30-75
DB 01.02.02.20 Kompressor DLE 30-75

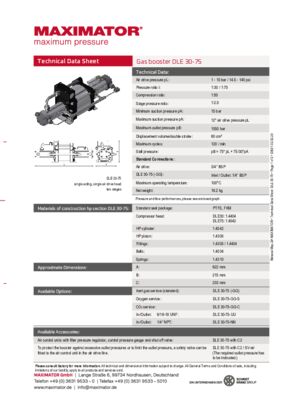

DB 01.02.02.20 Booster DLE 30-75
