Rental Units - Rental Units for liquids up to 4,000 bar - Power Pack Type LM5000 G400

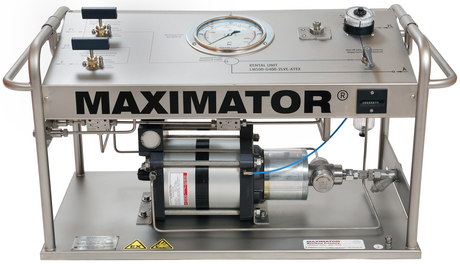

The MAXIMATOR Power Pack Type LM5000 G400 is designed for mobile pressure generation of up to 4,000 bar. Accessories include a 5 litre stainless steel canister, adapters and a pressure transducer.

  • Working pressure up to 4,000 bar
  • 3.1 calibrated gauges and transducers
  • Operating medium water
  • Extensive range of accessories, also prepared for pressure recording
  • Stable flight case for safe transport




Technical Data

Type:
LM5000-G400-2LVE-ATEX
Order Code:
3320.1110
Pressure Ratio:
1 : 796
Working Pressure max.:
approx. 4,000 bar
Operating Media:
Water *
Flow Capacity max.:
depending on application
Air Drive Pressure:
min. 1 bar / max. 8,5 bar
Dimensions W x D x H:
910 x 400 x 470 mm
Dimensions Case W x D x H:
1030 x 620 x 720 mm
Weight:
33 kg
Weight incl. Case:
91 kg

*other operating media on request

Scope of Supply

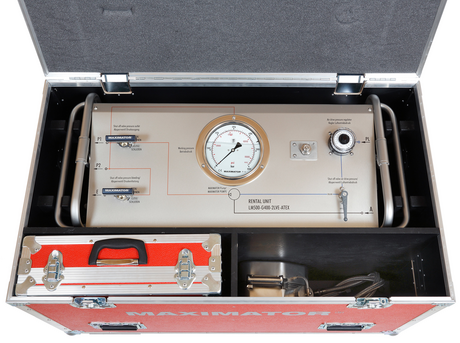

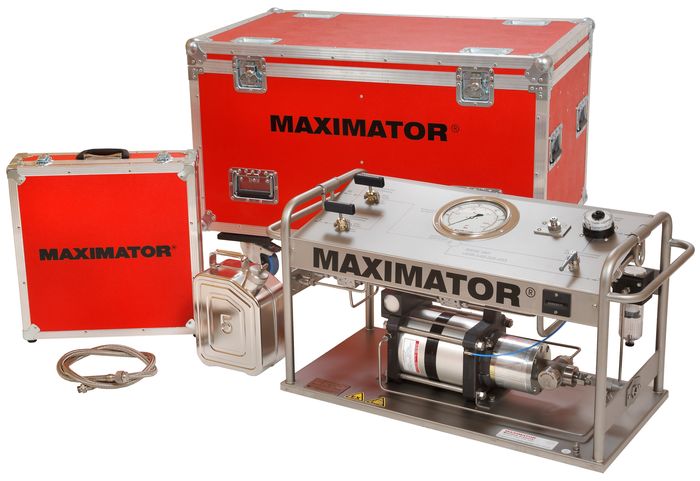

The MAXIMATOR Power Pack Type LM5000 G400 will be delivered in a compact flight case. The scope of supply comprises the Power Pack LM1600, the accessorie case, a hose and a stainless steel tank.

  • Power Pack LM 5000 G400
  • Accessories
  • Flightcase
  • Stainless Steel Tray
  • Stainless Steel Can 5 L
  • Hose

Accessories

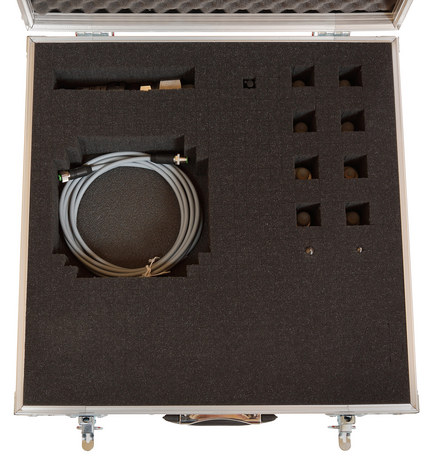

The accessory case for the Maximator Power Pack LM1600 contains various adapters. A pressure transducer together with cable connection is also included and allows digital pressure recording for pressure tests or calibration applications.

  • Druckmessumformer 0-5000 bar, 0-10V *
  • Adapter :
    4H(a)->1/2“(f) BSPP;
    4H(a)->FNPT1/2“;
    4H(a)->1/4“(f) BSPP;
    4H(a)->FNPT1/4“
  • Cable Connection 3000 mm

*not to be used in explosion areas

Connections

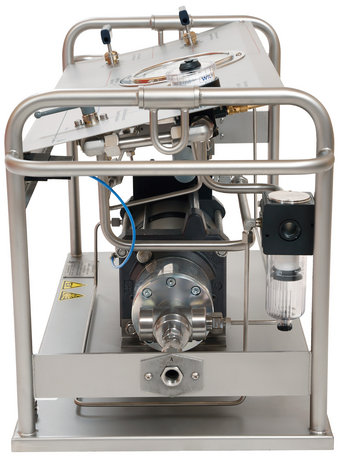

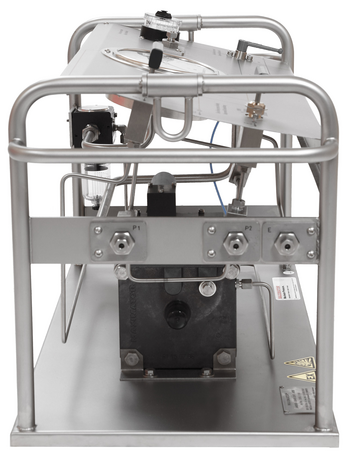

Anschluss-2-LM5000.jpg Anschluss-1-LM500.jpg
  • Air Drive Inlet: 1/2“BSPP
  • Pressure Outlet P1/P2:
    4H (9/16-18 UNF)
  • Measurement Connection:
    4H (9/16-18 UNF)
  • Fluid Inlet: 1/2“(f) BSPP
  • Pressure Release:
    4H (9/16-18 UNF)

Technical data sheets

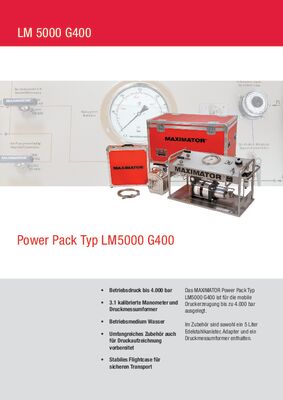

Datenblatt-Rental-Units-LM5000-G400.pdf
Datenblatt-Rental-Units-LM5000-G400.pdf
Language: German
Data-Sheet-Rental-Units-LM5000-G400.pdf
Data-Sheet-Rental-Units-LM5000-G400.pdf
Language: English
