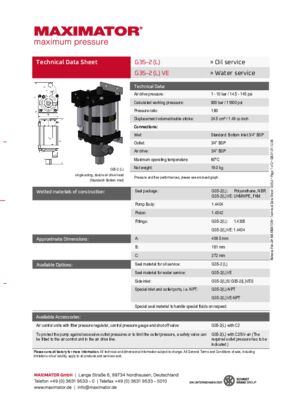

| Type | G35-2 |
|---|---|
| Pressure ratio | 1:80 |
| Displacement volume (cm³) | 24,50 |
| Displacement volume (in³) | 1,50 |
| Discharge (bar) | 800 |
| Discharge (psi) | 11600 |
| Air Drive Pressure min. (bar) | 1 |
| Air Drive Pressure min. (psi) | 14.5 |
| Air Drive Pressure max. (bar) | 10 |
| Air Drive Pressure max. (psi) | 145 |
| Weight (kg) | 19,00 |
| Flow (cfm) | 0,15 |
| Flow (l/min) | 4,30 |
| Inlet (in) | 3/4 |
| Outlet (in) | 3/4 |
| Drive Air (in) | 3/4 |
| Operating Temperature max. (°C) | 60 |
| Height (mm) | 409,50 |
| Depth (mm) | 272,00 |
| Width (mm) | 181,00 |
With our new special brochure, we are presenting all products from our Components division that are particularly suitable for hydrogen service in one catalog for the first time.
Flexdrive is a conversion kit developed by Maximator to reduce the air consumption of high pressure compressors. The modification can be implemented for all MAXIMATOR compressors with two air drive parts.
With the new 1- ½" series Maximator extends its VFT product family with components with a nominal size of 23.8 mm for 1,050 bar (15,000 psi).
The MAXIMATOR VFT-ToolBoXX Type CTTB provides order and clarity for your coning and threading tools.
