High Pressure Pumps - GSF series - GSF100

Type GSF100
Pressure ratio 1:113
Displacement volume (cm³) 8,80
Displacement volume (in³) 0,54
Discharge (bar) 1050
Discharge (psi) 15225
Air Drive Pressure min. (bar) 1
Air Drive Pressure min. (psi) 14.5
Air Drive Pressure max. (bar) 10
Air Drive Pressure max. (psi) 145
Weight (kg) 18,00
Flow (cfm) 0,06
Flow (l/min) 1,81
Inlet (in) 3/4
Outlet (in) 1/2
Drive Air (in) 3/4
Operating Temperature max. (°C) 60
Height (mm) 412,00
Depth (mm) 181,00
Width (mm) 272,00

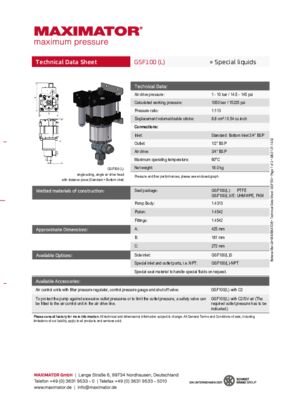

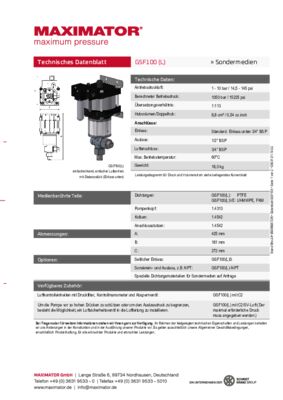

Technical data sheets

DB Pumpen GSF100
DB Pumpen GSF100
DB Pump GSF100
DB Pump GSF100
