Support Systems for Mechanical Seals

Gas-Versorgungseinheit
  • Support Systems for Mechanical Fluid Seals
    (Hydraulic seal supply units, Air heat exchanger, External circulation systems)
  • Support Systems for Mechanical Gas Seals
    (Gas seal supply units, Gas monitoring systems)

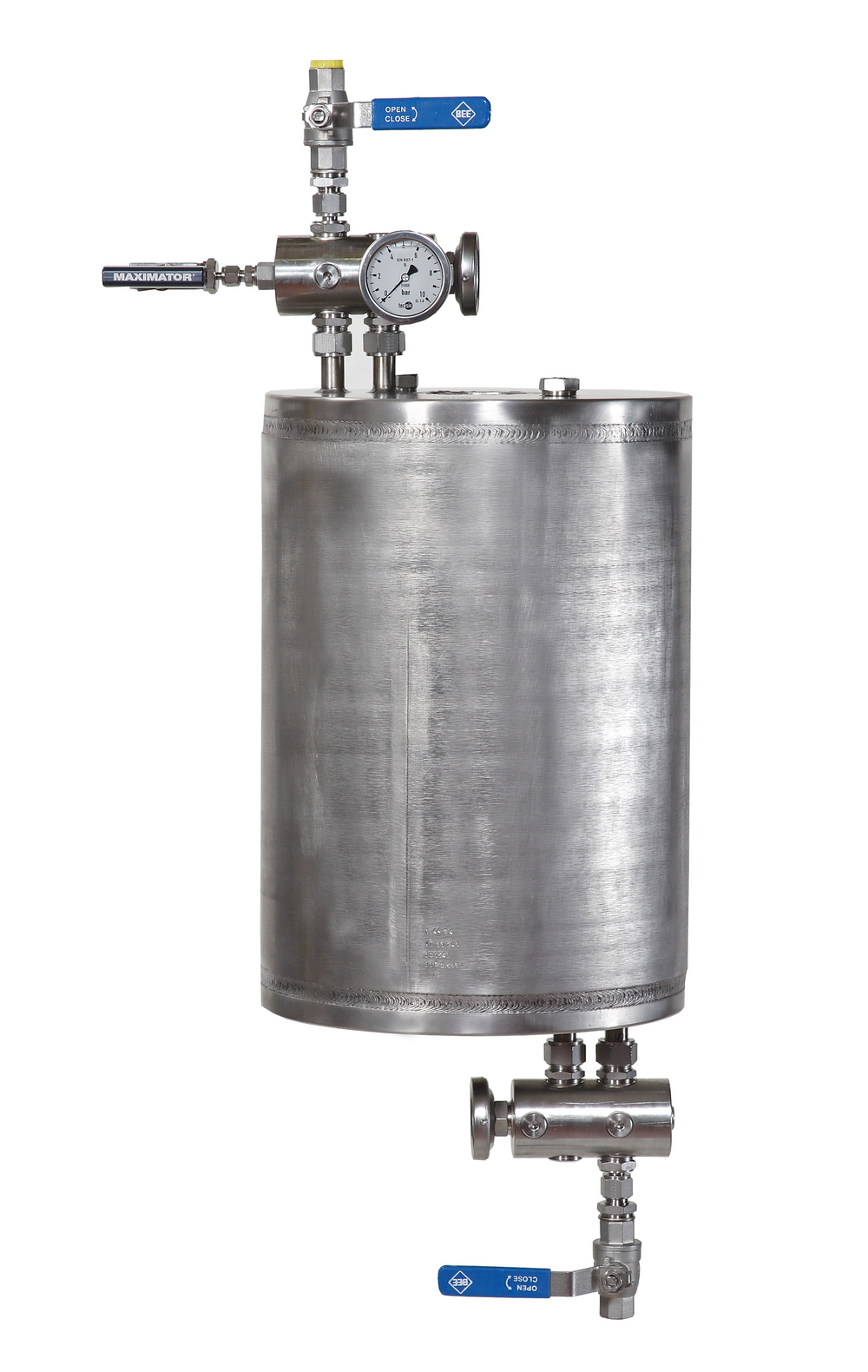

Support Systems for Mechanical Fluid Seals

Hydraulic seal supply unit

Zentrale Nachspeiseeinheit.jpg

  • Cost reduction because of supplying several mechanical fluid sealings with only one MAXIMATOR Unit
  • 250 litre tank volume
  • Complete process reliability as the unit incorporates a stand by pump
  • Automatic changeover to stand by pump
  • No electrical installation (only control elements)
  • Visible and audible alarm device in case of system is changing over to stand by pump
  • ATEX approved


Air heat exchanger

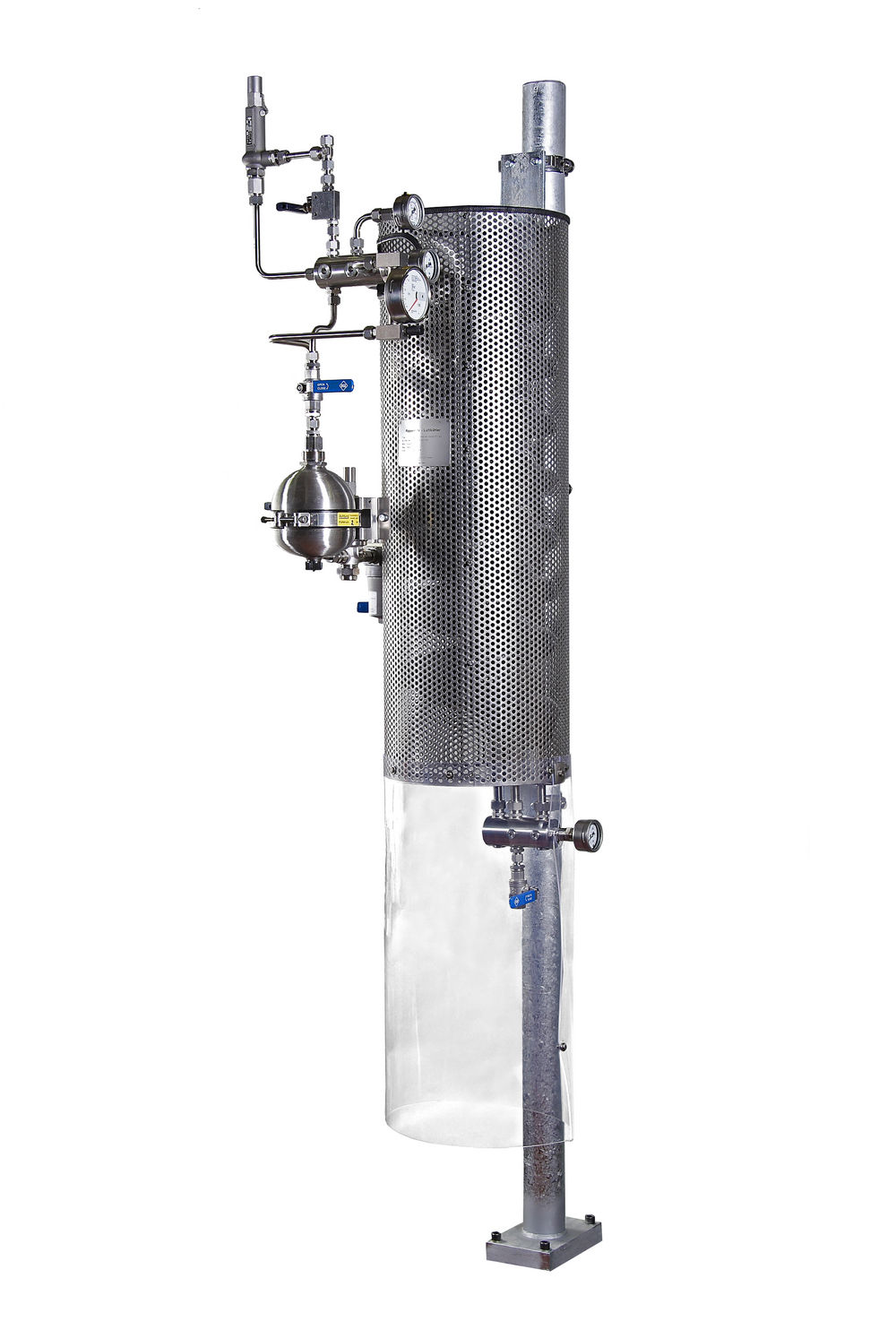

Luftkuehler

  • Laser welded ribbed-coiled tube
  • High cooling capacities
  • Low flow resistance of the sealing medium
  • Speicherblase Viton (FKM)
  • Wetted parts from stainless steel (1.4571)
  • Accumulator bladder made from Viton (FKM)
  • ATEX approved
  • Cost reduction due to air cooling, no further water supply required


External circulation system

externes Zirkulationssystem.jpg

  • Cooling coil inside the Tank
  • Cost reduction because of supplying several mechanical fluid sealings with only one MAXIMATOR Unit
  • No electrical installation (only control elements)
  • ATEX approved




Support Systems for Mechanical Gas Seals

Gas seal supply unit

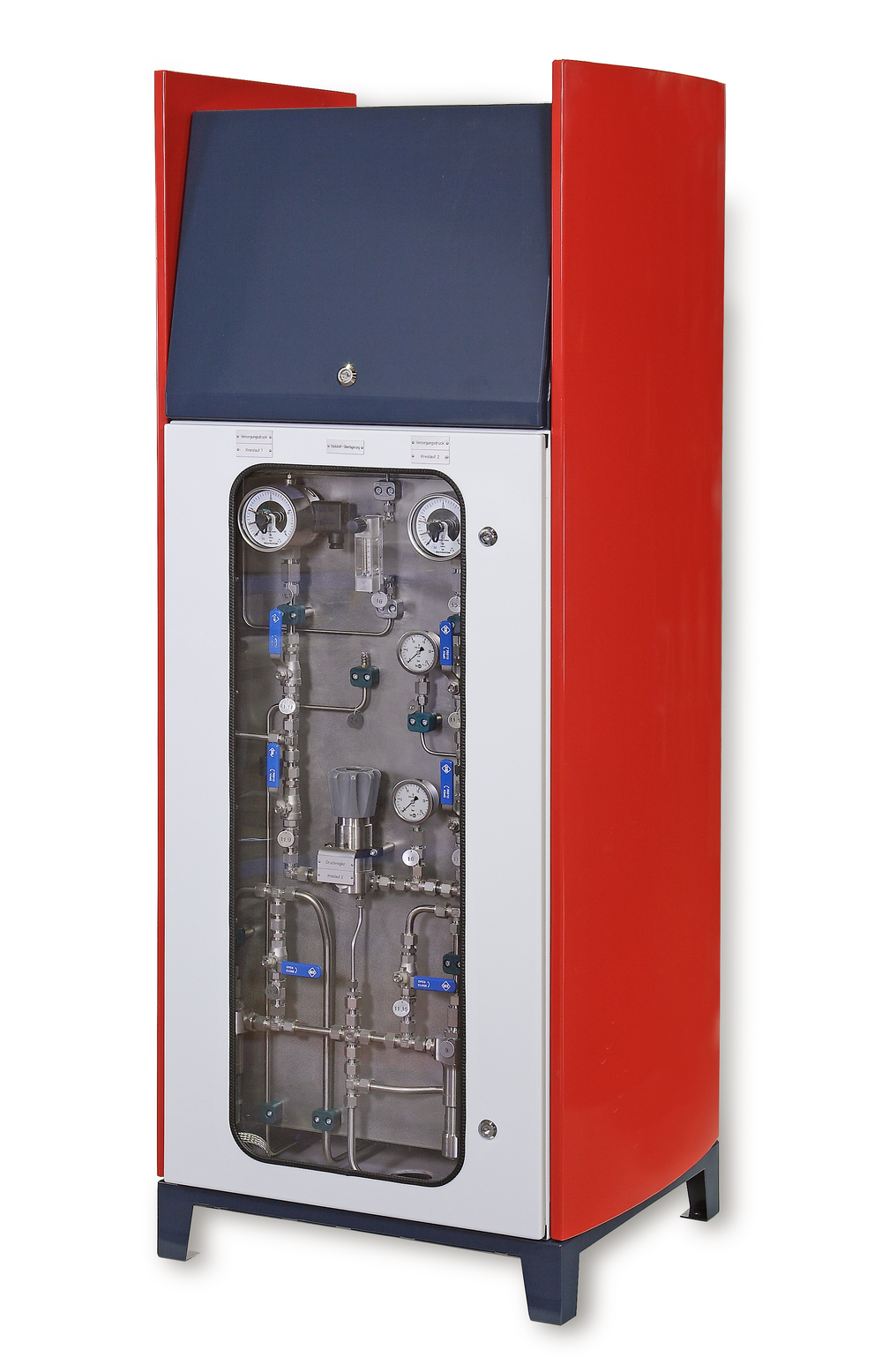

Gas-Versorgungseinheit

  • Complete process reliability as the unit incorporates a stand by booster
  • High flow capacities (Boosters connected in parallel)
  • Maintenance or exchange of one booster possible without stopping the process
  • Wetted parts made from stainless steel
  • Monitoring of each booster
  • Zero energy consumption after final pressure is attained

Gas monitoring systems

Gas-Ueberwachung

  • Regulation of the nitrogen pressure in accordance with the Mechanical Gas Seals
  • Pressure monitoring
  • Display of the flow capacity in accordance with the Mechanical Gas Seals
  • Early wear detection of the mechanical gas seal

Execution samples:

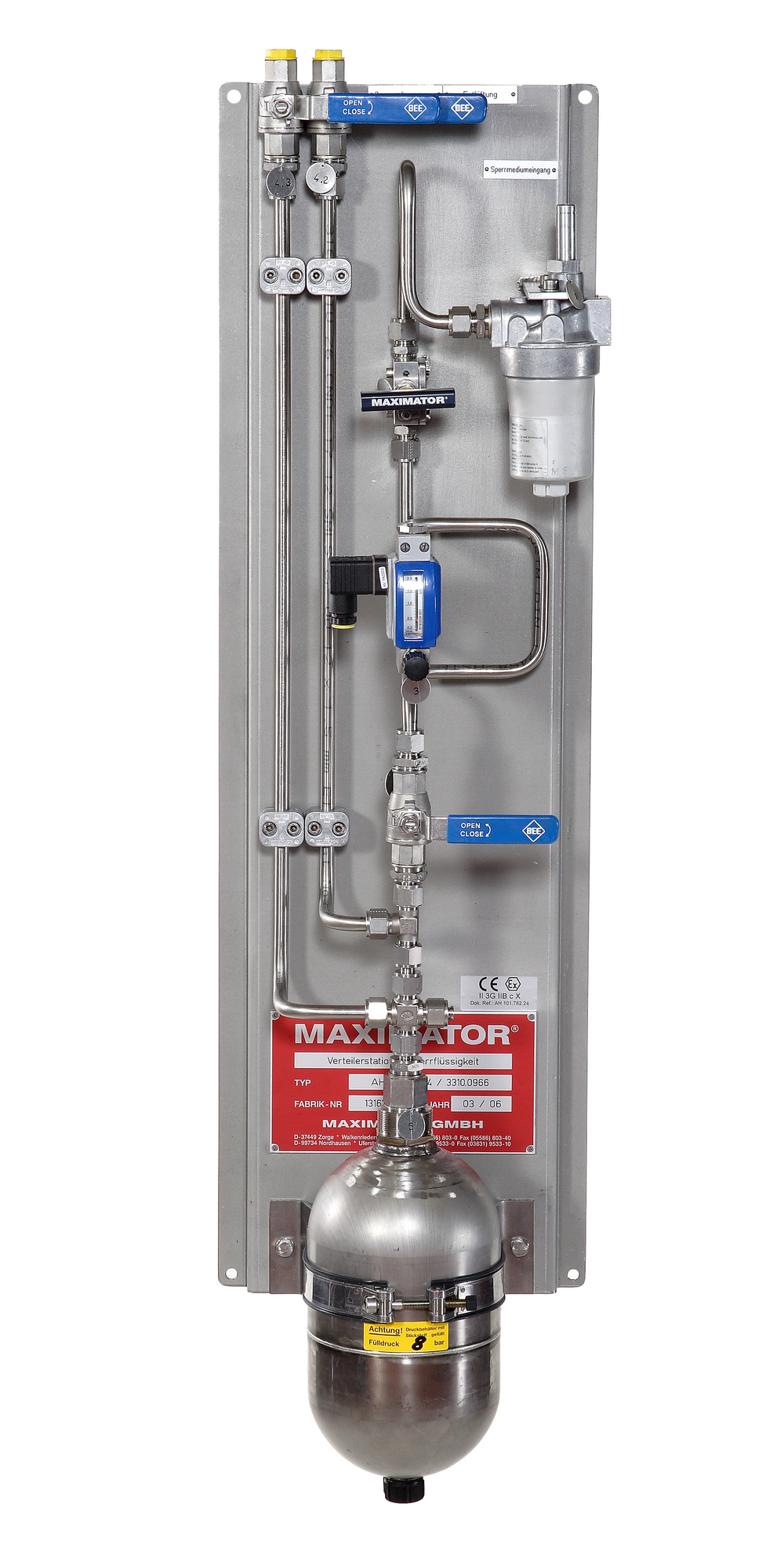

Durchflusseinheit
hydraulic supply unit

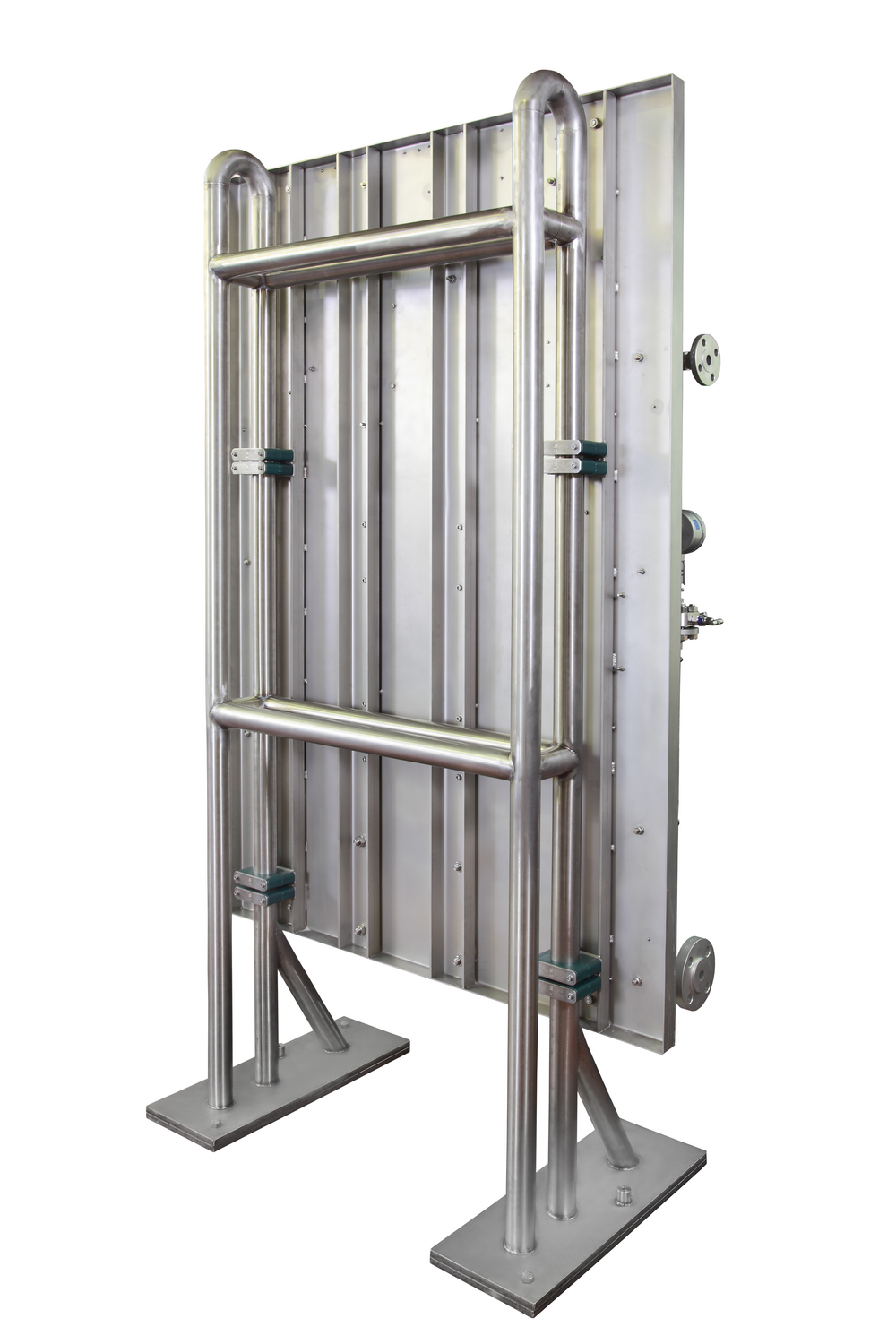

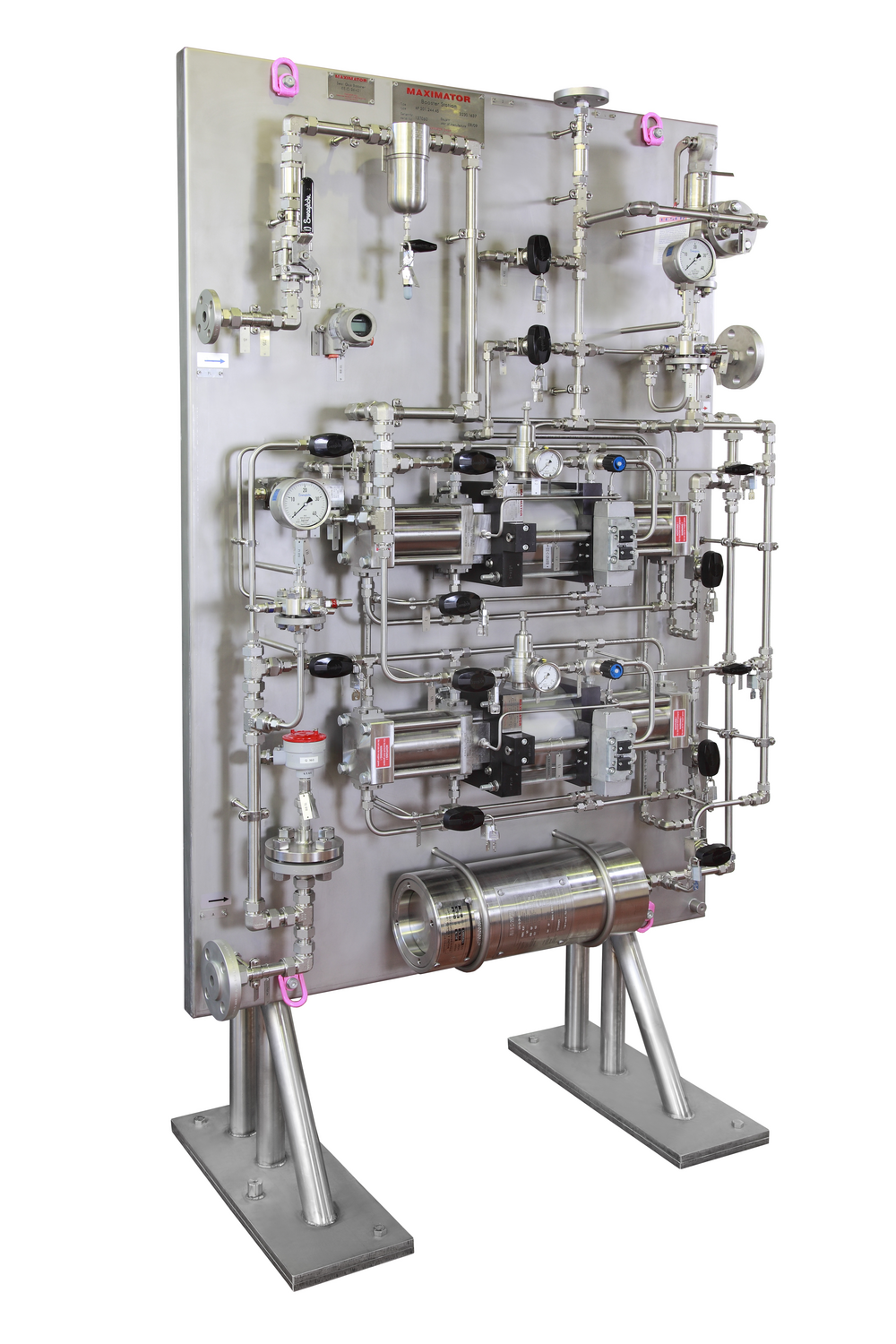

Verdichterstation 1 Rueckseite.jpg
Verdichterstation 1.jpg

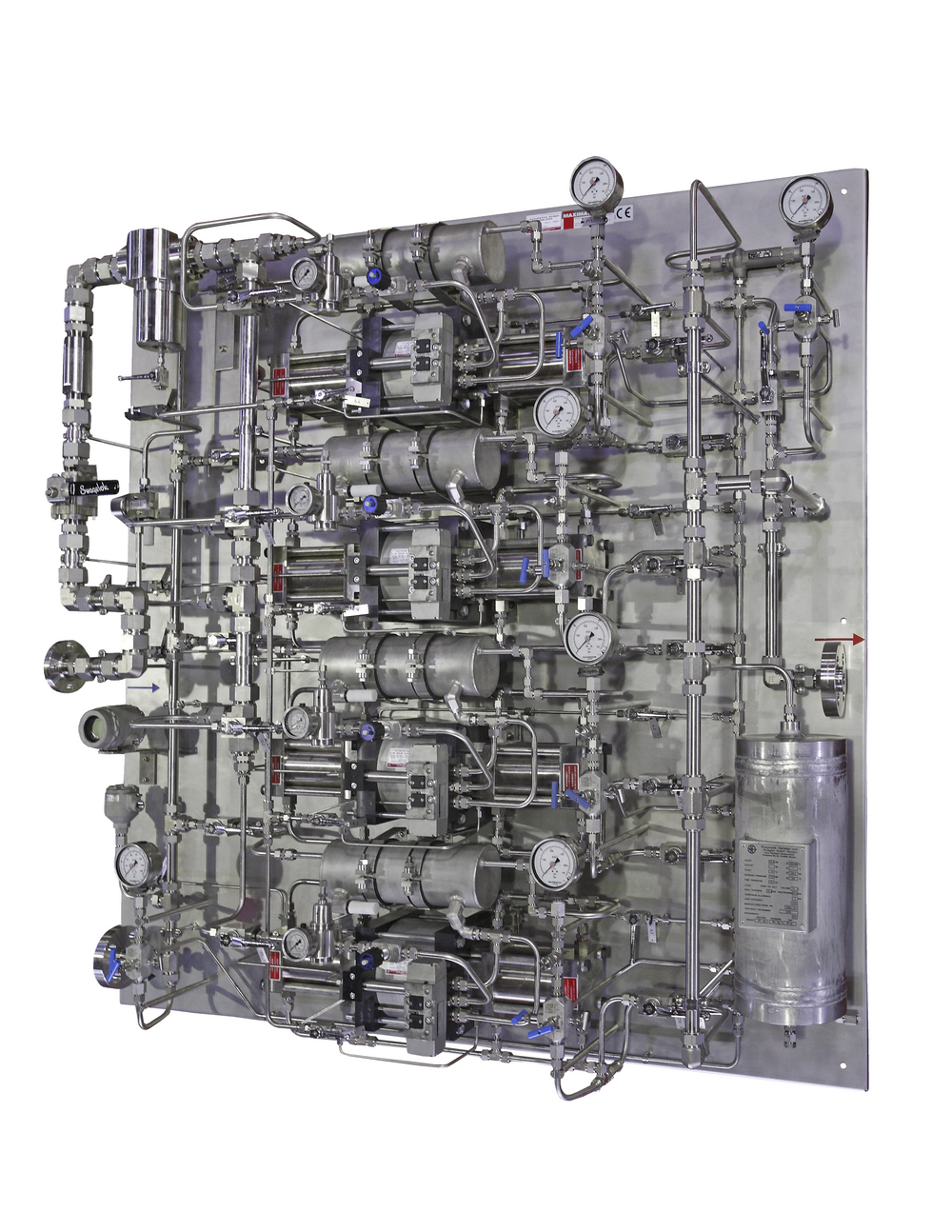

Verdichterstation 3.jpg

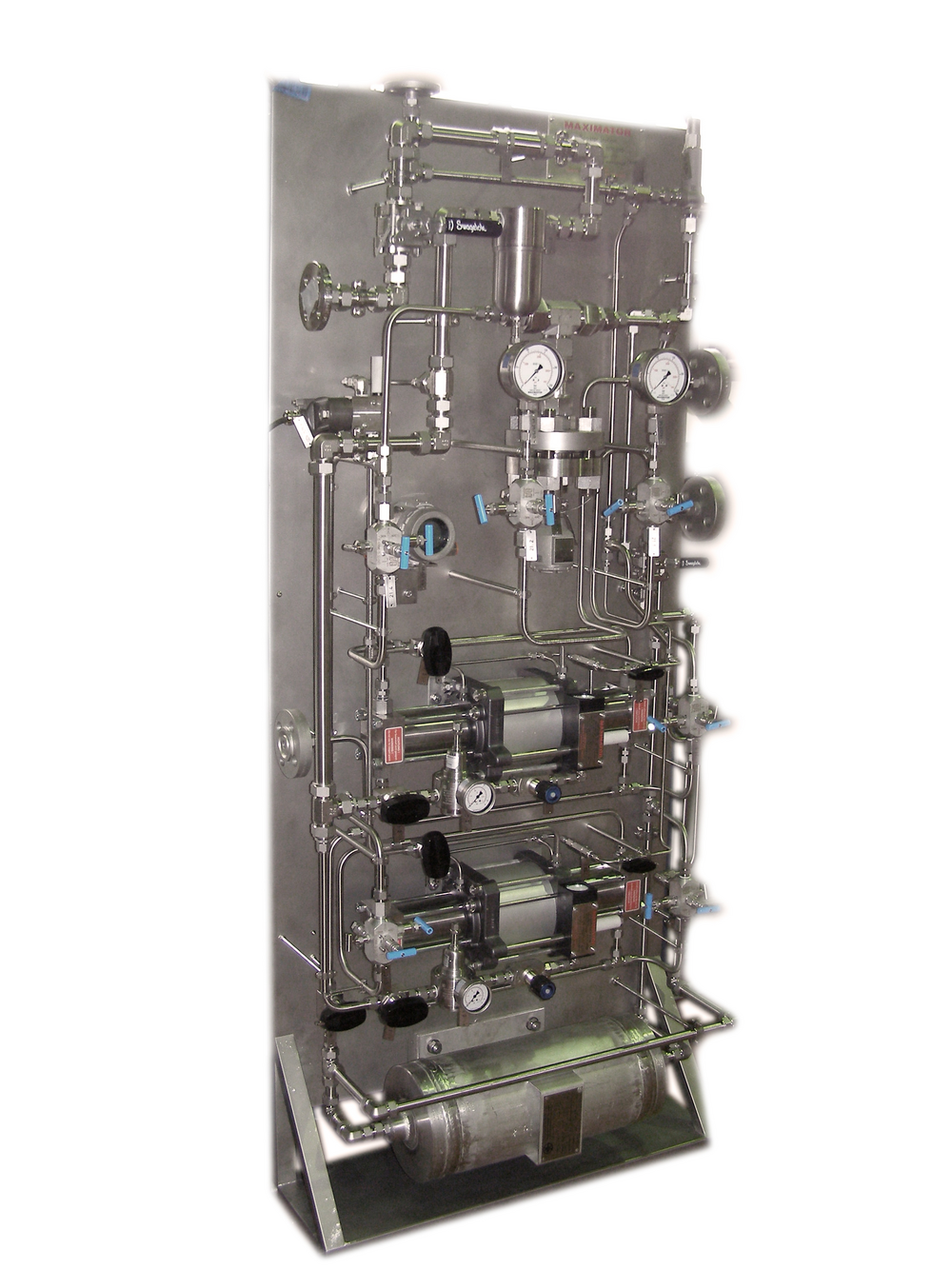

Verdichterstation 4.jpg

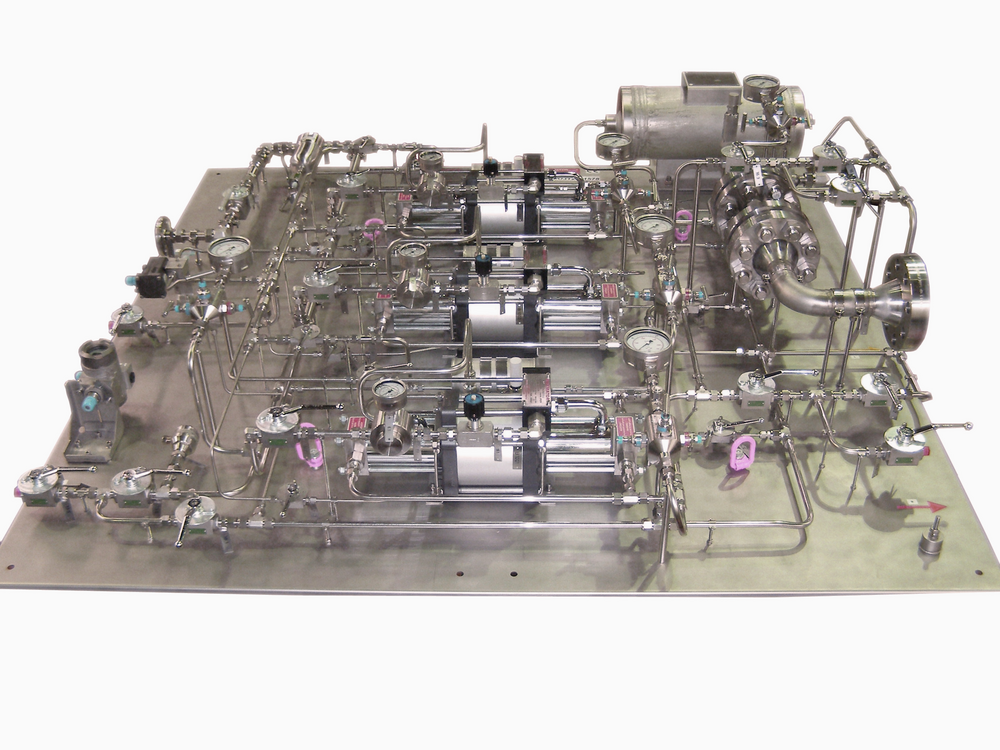

Verdichterstation 5.jpg

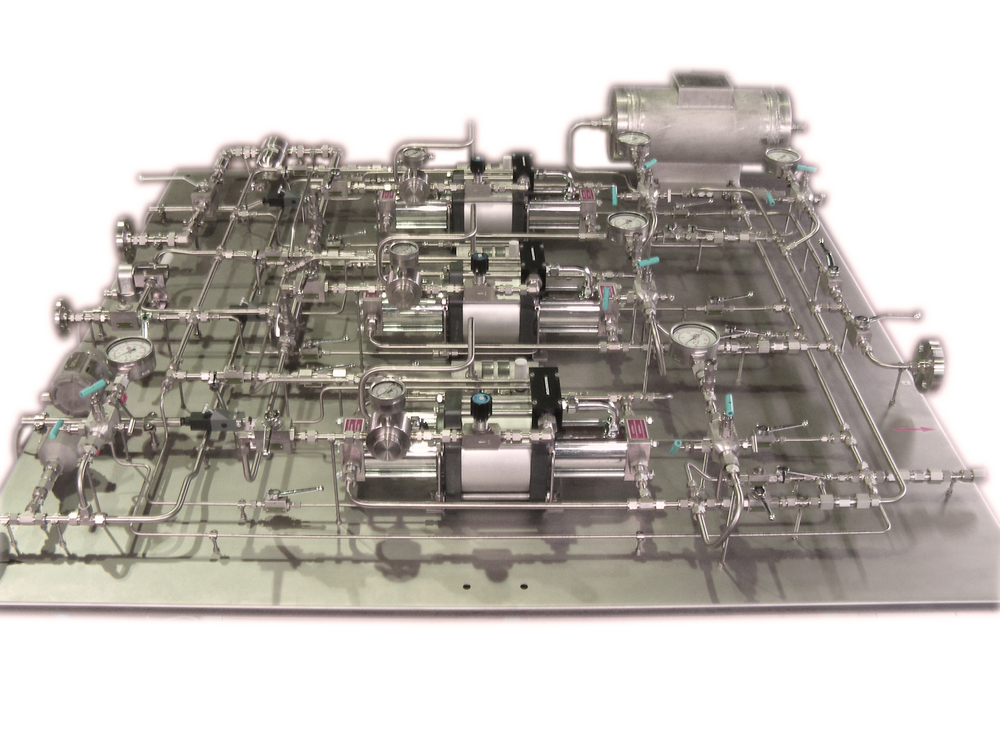

Versichterstation 2.jpg
Wasserkühler
Please click on an image to view larger version.
