Gas Boosters - Boosters to 300 bar (4,350 psi) - DLE 15-1-2

DLE 15-1-2
Type DLE 15-1-2
Pressure ratio 1:30
Displacement volume (cm³) 122,00
Displacement volume (in³) 7,44
Gas Inlet Pressure pA max. (bar) 300
Gas Inlet Pressure pA max. (psi) 4350
Gas Inlet Pressure pA min. (bar) 10
Gas Inlet Pressure pA min. (psi) 145
Formula to calculate gas outlet pressure pB 30*pL
Max. permitted outlet pressure (bar) 300
Max. permitted outlet pressure (psi) 4350
Air Drive Pressure min. (bar) 1
Air Drive Pressure min. (psi) 14.5
Air Drive Pressure max. (bar) 10
Air Drive Pressure max. (psi) 145
Weight (kg) 20,00
Inlet (in) 1/4
Outlet (in) 1/4
Drive Air (in) 3/4
Operating Temperature max. (°C) 100
Height (mm) 233,00
Depth (mm) 181,00
Width (mm) 615,00
Material of gas section Stainless steel

Technical data sheets

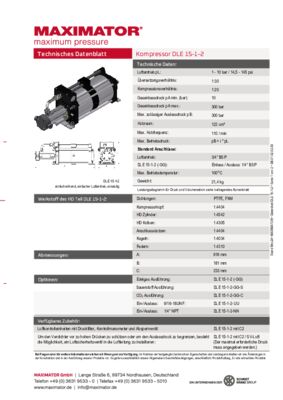

DB 01.02.02.04 Kompressor DLE 15-1-2
DB 01.02.02.04 Kompressor DLE 15-1-2
Language: German

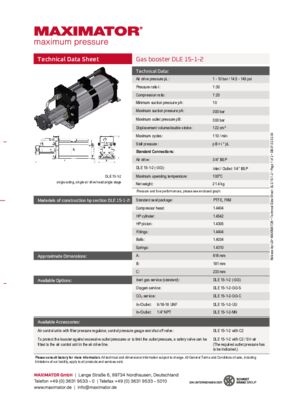

DB 01.02.02.04 Booster DLE 15-1-2
DB 01.02.02.04 Booster DLE 15-1-2
Language: English
