Gas Boosters - Boosters to 300 bar (4,350 psi) - DLE 15

DLE 15
Type DLE 15
Pressure ratio 1:15
Displacement volume (cm³) 244,00
Displacement volume (in³) 14,89
Gas Inlet Pressure pA max. (bar) 300
Gas Inlet Pressure pA max. (psi) 4350
Gas Inlet Pressure pA min. (bar) 7
Gas Inlet Pressure pA min. (psi) 101.5
Formula to calculate gas outlet pressure pB 15*pL+pA
Max. permitted outlet pressure (bar) 300
Max. permitted outlet pressure (psi) 4350
Air Drive Pressure min. (bar) 1
Air Drive Pressure min. (psi) 14.5
Air Drive Pressure max. (bar) 10
Air Drive Pressure max. (psi) 145
Weight (kg) 18,00
Inlet (in) 1/2
Outlet (in) 1/2
Drive Air (in) 3/4
Operating Temperature max. (°C) 100
Height (mm) 233,00
Depth (mm) 205,50
Width (mm) 620,00
Material of gas section Stainless steel

Technical data sheets

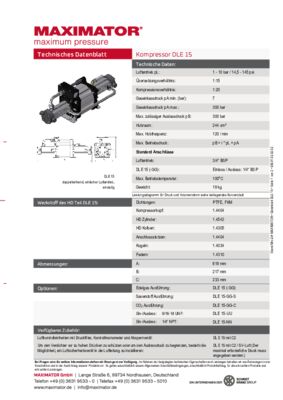

DB Kompressor DLE 15
DB Kompressor DLE 15
Language: German

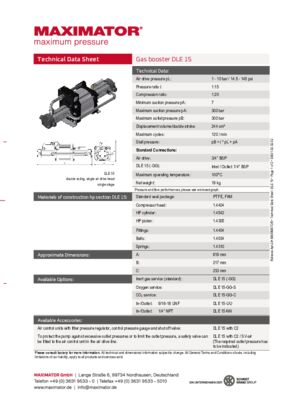

DB Booster DLE 15
DB Booster DLE 15
Language: English
