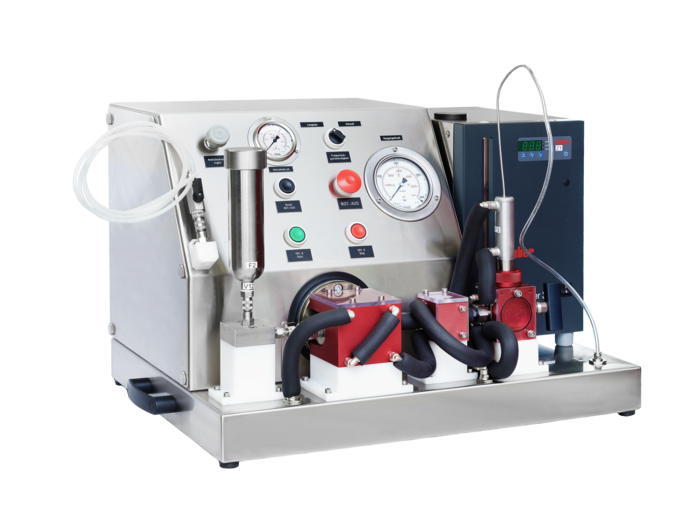

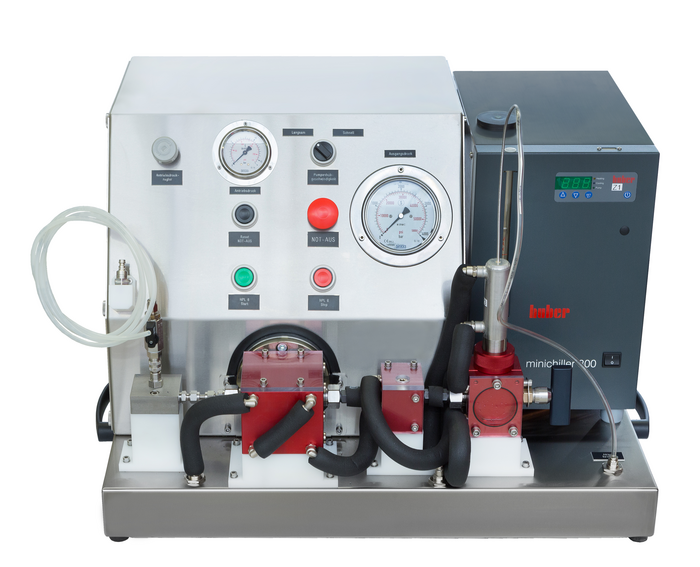

High Pressure Homogenizer HPL6

High Pressure Homogenizer Type HPL6

The Maximator high pressure homogenizer HPL6 can be used for cell disruption in the biotechnology, for the homogenizing of dairy products, disruption of cellulose in vegetables, and production of gel systems in the pharmaceutical industry.

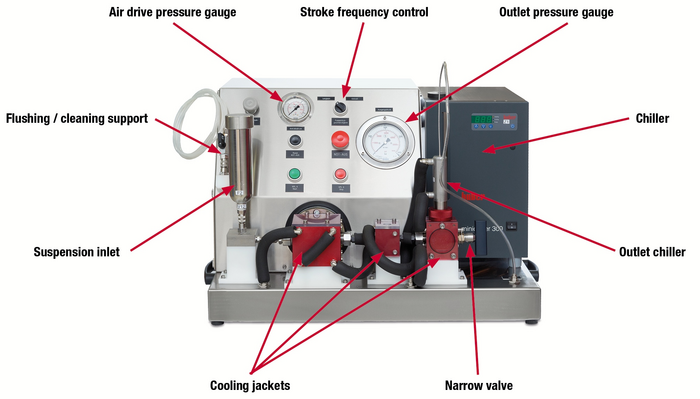

Structure & Components HPL6

The Maximator high pressure homogenizer HPL6 is designed for energy-efficient, continuous production of superfine emulsions. The HPL6 system achieves the homogenizing effect by means of fully adjustable decompression of the liquid from max. 4,200 bar to an ambient pressure.

The high pressure homogenizer uses a Maximator air driven high pressure pump to pressurise the suspension / liquid. The required pressure for the homogenizing process can be easily pre-set by means of adjusting the air drive pressure from 1 to 10 bar.

In order to achiev the best possible homogenizing results, a Maximator high pressure micrometer-needle valve is used as homogenizing valve and allows the user to adjust the gap in an extremly precise manner.

HPL6 user benefits

Excellent flow rates at comparatively very high pressure

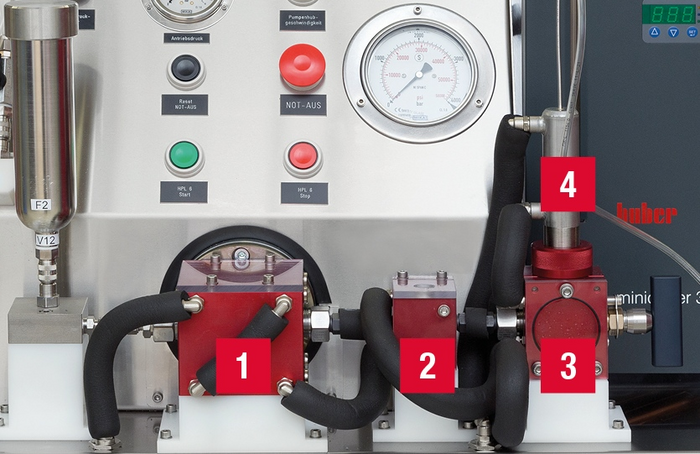

Low temperature throughout entire process

Simple and safe operation

Very easy and fast to clean

Quiet and low-maintenance

Small dead space volume

Very fast support-exchange (from sample vessel to flushing swivel)

Cleaning process

The Maximator HPL6 high pressure homogenizer is developed from professional users and hence offers one of the fastest cleaning procedure. The clever design allows the cleaning of the system in less than one minute.

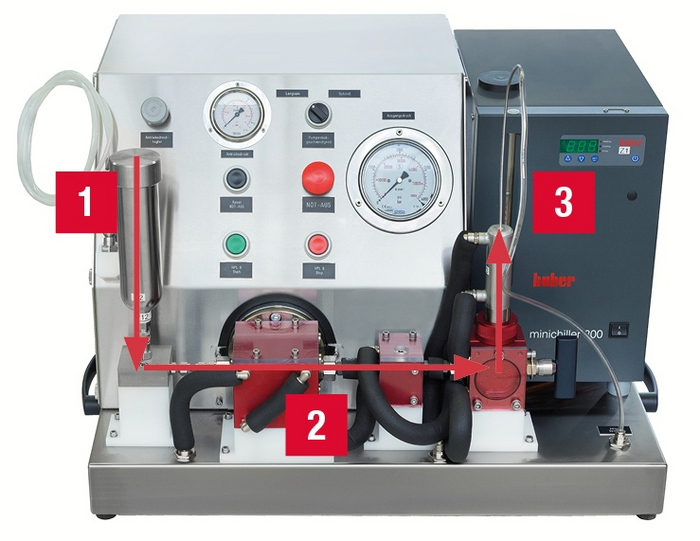

After the homogenization process or cell lyses the sample vessel just needs to be removed and the flushing swivel is to be connected to the intake quick coupling in order to flush the complete system with e.g. DI-Water.
