REVOLUTIONARY HYDROGEN GAS BOOSTER SERIES – X-TOWER UP TO 900 BAR - THE MOST FLEXIBLE GAS FILLING SYSTEM

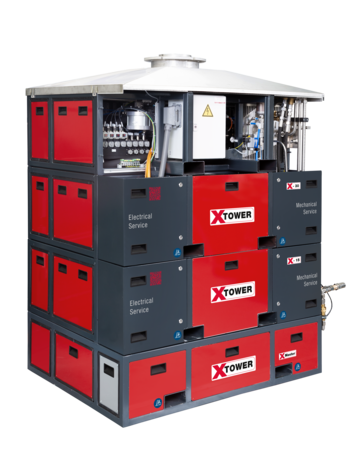

The Maximator X-TOWER is a modular Gas Compression System, specifically designed for Hydrogen compression up to 900 bar with scalable volume flow. The X-TOWER is designed for integration in existing systems and is covering nearly all requirement for efficient gas compression.

Contact

Modular compressor solution for hydrogen

A standard configuration up to 900 bar consists of one MASTER-Module (control module) and up to three X-Modules (gas booster modules) - first stage module up to 270 bar, second stage module up to 540 bar and the final stage module up to 900 bar. This configuration will provide a gas outlet flow of 20 kg Hydrogen per hour. For higher outlet capacities more modules can be connected easily.

For lower inlet pressure (e.g. electrolyser) X-Modules are also available. Please get in touch with us for your detailed X-TOWER configuration.

The gas compression is realized with our new EHB-Series booster technology (Electro-Hydraulic-Booster) and provides unrevealed efficiency due to their completely redesigned electrohydraulic drive concept.

For all applications the MASTER-Module is mandatory and is handling safety and functional features for maximum three X-Modules. The X-Modules can be combined and connected depending on the application.

­

Features

FLEXIBILITY

FLEXIBILITY

With the X-TOWER you are planning the future. Our solution can be adapted to new challenges by changing, adding orremoving X-Modules.

The modular design allows many combinations of X-Modules to cover many different applications and requirements.

EFFICIENCY

EFFICIENCY

With the new frequency converter controlled completely closed hydraulic drive concept of our EHB-Series we are providing the most efficient way to compress gases.

  • Efficient hydraulic drive with less oil volume
  • Flushing concept integrated
  • Quite drive technology
  • Power consumption monitoring
COOLING

COOLING

Intelligent and efficient new cooling concept keep the gas temperature, the EHB and the electrical enclosures under control with minimum energy consumption.

AIR FLOW TOWER PURGE

AIR FLOW TOWER PURGE

With our revolutionary design concept of the forced ventilation and forced exhaust we make sure, that no explosive atmosphere can occur inside the X-Tower.

INTEGRABILITY

INTEGRABILITY

With reduced interface connection we are proud to say: „plug & boost“.

A web-based access to the control system offers independent control with your mobile PC or smartphone. Our X-Tower Series is prepared for IoT integration to improve processes and provide more information about the compression process than ever before. Easy integration in existing systems.

SAFETY

SAFETY

Purging, temperature & pressure control, gas detection, active ventilation (zone free), safety PLC are only some of our safety features of the new X-Tower series. Safety tested and production monitored by third party organisation.

The POWER of the X-Tower

Latest catalogues and flyers

­

X-Tower - Revolutionary H2 Gas Booster Series up to 900 bar

A modular Gas Compression System specifically designed for Hydrogen compression | Language: English | Release: 06/2024

To the catalogue
­
