High Pressure Pumps - M...D series - M189D

Type M189D
Pressure ratio 1:220
Displacement volume (cm³) 1,20
Displacement volume (in³) 0,07
Discharge (bar) 2200
Discharge (psi) 31900
Air Drive Pressure min. (bar) 1
Air Drive Pressure min. (psi) 14.5
Air Drive Pressure max. (bar) 10
Air Drive Pressure max. (psi) 145
Weight (kg) 3,70
Flow (cfm) 0,02
Flow (l/min) 0,49
Inlet (in) 3/8
Outlet (in) 3/8
Drive Air (in) 3/8
Operating Temperature max. (°C) 60
Height (mm) 195,00
Depth (mm) 104,00
Width (mm) 112,00

Technical data sheets

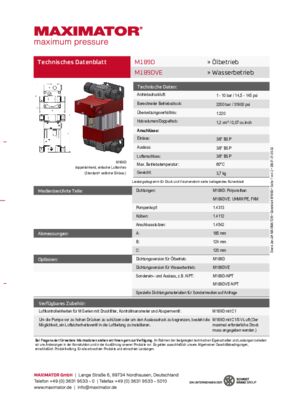

DB 01.01.05.02 Pumpen M189-D
DB 01.01.05.02 Pumpen M189-D

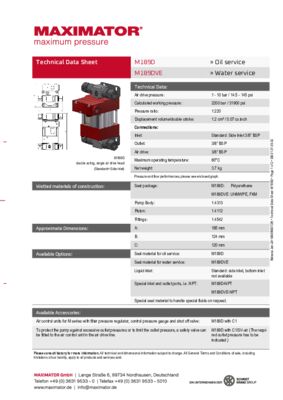

DB 01.01.05.02 Pump M189-D
DB 01.01.05.02 Pump M189-D
