High Pressure Pumps - M...D series - M22D

Type M22D
Pressure ratio 1:28
Displacement volume (cm³) 9,20
Displacement volume (in³) 0,56
Discharge (bar) 280
Discharge (psi) 4060
Air Drive Pressure min. (bar) 1
Air Drive Pressure min. (psi) 14.5
Air Drive Pressure max. (bar) 10
Air Drive Pressure max. (psi) 145
Weight (kg) 3,70
Flow (cfm) 0,14
Flow (l/min) 3,91
Inlet (in) 3/8
Outlet (in) 3/8
Drive Air (in) 3/8
Operating Temperature max. (°C) 60
Height (mm) 195,00
Depth (mm) 104,00
Width (mm) 112,00

Technical data sheets

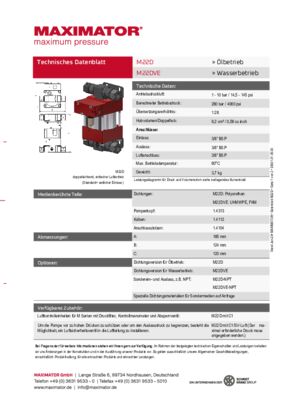

DB 01.01.05.03 Pumpen M22-D
DB 01.01.05.03 Pumpen M22-D

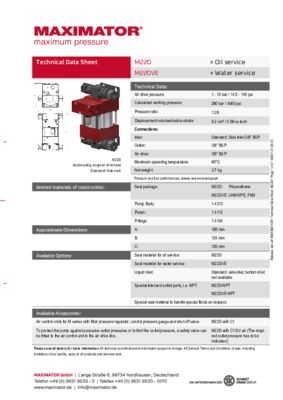

DB 01.01.05.03 Pump M22-D
DB 01.01.05.03 Pump M22-D
