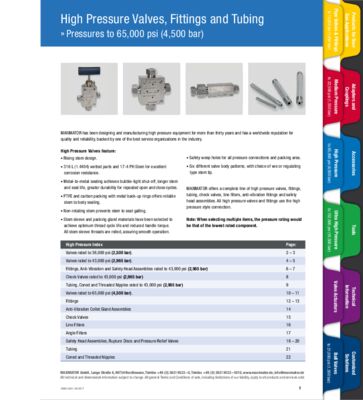

Web Catalogue VFT-Chapter 3 - High Pressure.pdf
High Pressure Valves, Fittings and Tubings - Pressures to 65,000 psi (4,500 bar)
MAXIMATOR valves of the 36V series have a cold-machined stainless steel body. Valve bodies are available in six different designs and can be equipped with regulating stem.
A special feature is the non-rotating stem which ensures a long life and thus a high reliability of the valve. These MAXIMATOR high pressure valves with metal sealing have a high level of safety and reliability under adverse operating conditions.
These valves may be employed both with gases and all fluids. Their traceability is ensured through extensively documented data (batch number, max. pressure, material number, type designation).
Each high pressure valve of the MAXIMATOR series is completely equipped with gland and collar.
|Body material||1.4404 (316L)|
|Stem material||17-4 PH (1.4542)|
|Medium||Medium Compatibility Guide|
|Temperature||-50°C to +230°C|
|Seal||PTFE + Carbon|
|Connection||4HF; 6HF; 9HF|
|Orrifice||up to 0.125" (3,2 mm)|
