Rebreather Oxygen Booster - ROB 22 (-HL)

The low price Booster is the entrance for an ambitious diver or a small group. As an option, this booster can be supplied with a manual handle (-HL Version) to top up bottles manually.

Contact

MAXPRO Technologies Inc.
Telephone: +001 814-474-9191 | Contact

MAXIMATOR Test, LLC
Telephone: 847.855.2700 | Contact

General information

General information

Technical data ROB 22 (-HL):

Average flow: 180 NL/min *
Drive source: Oilfree compressed air 1-10 bar
Inlet pressure: 50 to 280 bar
Max. outlet pressure: 280 bar
Pressure ratio: 1:28
Volume per stroke: 4,6 cm³
Temperature max.: 60°C
Weight: 3,7 Kg
Dimensions (H x D x W): 200mm x 116mm x 116mm

* The flow is depending on air drive and inlet pressure

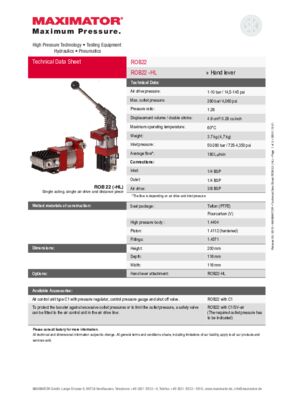

	DB-01.15.01-ROB-22-HL-.pdf Data Sheet ROB 22 (-HL) Language: English
	download

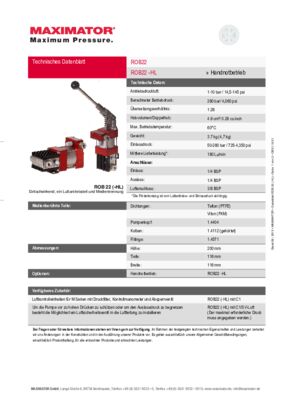

	DB-01.16.01-ROB-22-HL-.pdf Data Sheet ROB 22 (-HL) Language: German
	download
