Rebreather Oxygen Booster - ROB 8-37

The ROB 8-37 is a 2-stage Booster for filling and compression of oxygen. A stable flow with low inlet pressures of 10-20 bar gives optimal flows for professional application.

Contact

Your ZIP-code (5-digit):

General information

General information

Technical data ROB 8-37:

Average flow: 30 NL/min *
Drive source: Oilfree compressed air 1-10 bar
Inlet pressure: 10 to 20 bar
Max. outlet pressure: 300 bar
Pressure ratio: 1:8 / 1:37
Volume per stroke: 21,6 cm³
Temperature max.: 60°C
Weight: 7 Kg
Dimensions (H x D x W): 280mm x 145mm x 120mm

* The flow is depending on air drive and inlet pressure

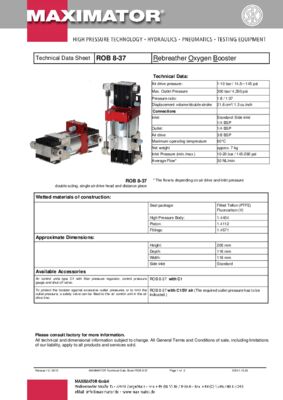

	DB-01.15.02-ROB-8-37.pdf Data Sheet ROB 8-37 Language: English
	download

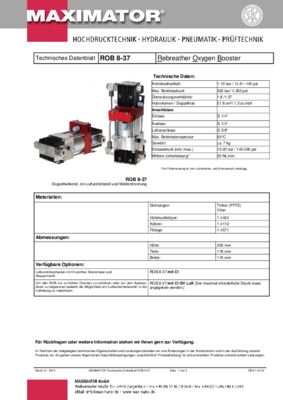

	DB-01.16.03-ROB-8-37.pdf Data Sheet ROB 8-37 Language: German
	download
