Rebreather Oxygen Booster - ROB 5-30 Station

Oxygen Booster Station Typ ROB 5-30
The MAXIMATOR-Booster station will be used for the compression of breathing air and oxygen. Oxygen bottles for the diving industry will be filled up to 200 bar. The complete Station is installed in a stainless steel protection frame. All operation devises are installed in a panel.

Technical data ROB 5-30:

  • Drive source: Oilfree compressed air 1-10 bar
  • working pressure at 10 bar air drive pressure: 200 bar
  • Pressure ratio: 1:5 / 1:30
  • Temperature max.: 60°C
  • Weight: 54 Kg
  • Dimensions (H x D x W): 520 x 410 x 920 mm
DB-ROB-5-30-Oxygen-Booster-Station.pdf
DB-ROB-5-30-Oxygen-Booster-Station.pdf

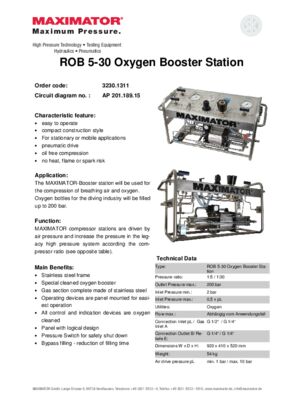

Data Sheet ROB 5-30 Oxygen Booster Station Language: English
DB-ROB-5-30-Verdichterstation.pdf
DB-ROB-5-30-Verdichterstation.pdf

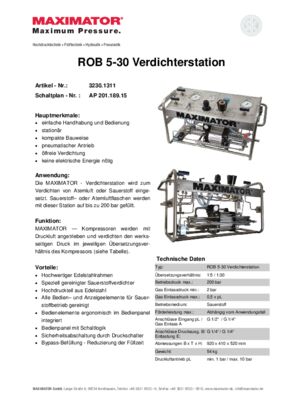

Data Sheet ROB 5-30 Booster Station Language: German
